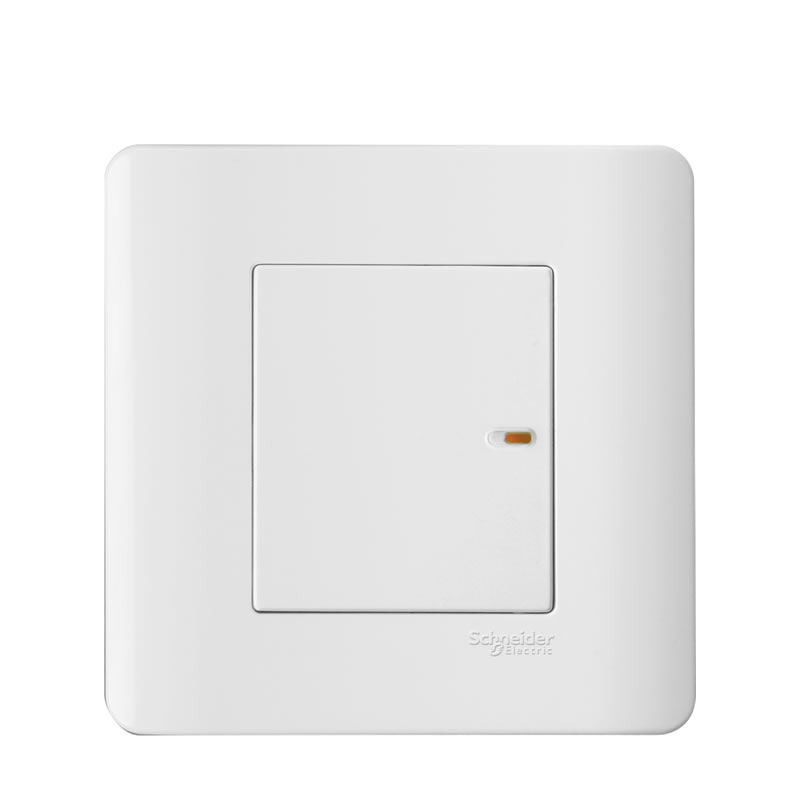

16AX/20A 1Gang 2way full-flat switch White

16AX/20A 1Gang 2way full-flat switch White

SKU: E8431_2_WE Category: Tag:

Description

Main

range ZENcelo
product or component type Switch
switch function 2-way
number of gangs 1 gang

Complementary

device mounting Surface
Flush
clamping connection capacity 3 x 2.5 mm² for solid cable(s)
3 x 2.5 mm² for stranded cable(s)
4 x 1.5 mm² for solid cable(s)
4 x 1.5 mm² for stranded cable(s)
rated current 20 A/16 AX at 250 V AC 50/60 Hz
material Grid plate: polycarbonate + GF 20 %
Base: polycarbonate
Cover: polycarbonate
Surround: polycarbonate
load type Fluorescent lamp
Incandescent lamp
Resistive
Inductive
colour tint White (RAL 9003)
connections – terminals Brass rod terminals
width 87 mm
height 87 mm
depth 31 mm
